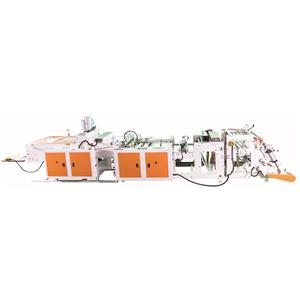

Hot Cutting Plastic Bag Making Machine
1. The shopping bag making machine integrates electromechanics and uses LCD touch screen operation. It can process plastic bags of different specifications and shapes, which can realize automated production and improve production efficiency.
2. Bag making machine has automatic feeding, photoelectric tracking; automatic computer positioning and edge correction; precise adjustment of temperature, speed, length and other functions; the plastic bags produced have firm sealing lines and beautiful tangent lines.
3. Side seal machine adopts advanced technology and high-quality materials. It is a green and environmentally friendly bag making equipment that reduces energy consumption.
Product Functions Of Side Seal Machine:
Shopping bag making machine can realize automated production and can thermally cut simple natural color and color printed plastic films of polyethylene materials and degradable materials. Bag making machine is widely used in the fields of medicine, chemical industry, food, daily necessities, and animal husbandry; Side seal machine Through advanced computer control and mechanical design, the sealing position can be prevented from being affected by stretching, and the plastic bags produced are firm and simple in appearance.
Product Parameters Of Side Seal Machine:
| Machine Type | WCJX-800×1(400×2)-CB | ||
| Machine Components | Main Machine | Auxiliary Machine | |
| Bag Making Length(mm) | 150-300 | ||
| Bag Making Width(mm) | 500-750 | ||
| Bag Making Thickness(mm) | 0.015-0.15 | ||
| Bag Making Speed(pcs/min) | PE | (50-260)×2 | |
| PBAT | (50-200)×2 | ||
| Pressure Range(MPa) | 0.2-0.6 | 0.4-0.6 | |
| Punching Speed(times/min) | 1~8 | ||
| Total Power(KW) | 13.5 | 2 | |
| Power Source(V/HZ) | 380/50 | 220/50 | |
| Machine Weight(Kg) | 1000 | 1000 | |
| Packing Dimension(L×W×H）（mm） | Unwinding Frame | 1000×1200×1260 | 2300×1450×1800 |
| Main Maching | 2720×1450×1360 | ||
| Overall Dimension(L×W×H）（mm） | 7040×1450×1800 | ||
Product Advantages Of Bag Making Machine:
1. The shopping bag making machine adopts a computer servo motor control structure and has automatic functions such as feeding, sealing and cutting, counting, discharging, and reporting. It can track film icons with electric eyes to improve production efficiency.
2. The shopping bag making machine uses high-quality raw materials and uses high-quality edge sealing knives. It does not deform when heated to high temperatures. It has strong fusion force, makes the bag not easy to deform, and has high production efficiency.
3. The side seal machine adopts a heated stamping design, which can automatically set the bag making length and speed, facilitate cutting, automatically remove waste materials, simple operation, and increase production capacity.
4. The Bag making machine adopts fine craftsmanship to improve the user's operating experience without affecting the overall aesthetics of the Side seal machine.
