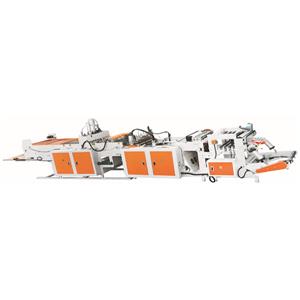

Heat Sealing Heat Cutting Vest Bag Making Machine
1. Heat Sealing Heat Cutting Poly Bag Machine has a user-friendly structural design, which can quickly transport materials and realize automatic stacking of bags, making it convenient for collection and packaging.
2. Heat Sealing Heat Cutting Poly Bag Machine is capable of high-speed conveying and precise positioning; intelligent operation greatly reduces labor intensity.
3. Heat Sealing Heat Cutting Poly Bag Machine adopts pneumatic punching device and online punching and clamping, saving intermediate links and improving production efficiency.
Product Introduction Of Automatic Heat Seal Cut Plastic Bag Making Machine:
This Heat Sealing Heat Cutting Poly Bag Machine is suitable for producing cylindrical plastic bags of polyethylene and degradable materials. Through microcomputer control and mechanical design, the bag sealing is strong, smooth and beautiful. It is an ideal product for producing vest bags (vest bags). model.
Product Parameters Of Automatic Heat Seal Cut Plastic Bag Making Machine:
| Machine Type | WCJX-700-VB | WCJX-800-VB | |||
| Machine Components | Main Machine | Auxiliary Machine | Main Machine | Auxiliary Machine | |
| Bag Making Length(mm) | 350-1000(+600) | 350-1000(+600) | |||
| Bag Making Width(mm) | ≤650 | ≤750 | |||
| Bag MakingThickness(mm) | 0.015-0.15 | 0.015-0.15 | |||
| Bag Making Speed(pcs/min) | PE | 50-400 | 50-400 | ||
| PBAT | 50-300 | 50-300 | |||
| Pressure Range(Mpa) | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 | |
| Punching Speed(times/min) | 1~8 | 1~8 | |||
| Total Power(KW) | 13 | 2 | 13.5 | 2 | |
| Power Source(V/Hz) | 380/50 | 220/50 | 380/50 | 220/50 | |
| Machine Weight(Kg) | 900 | 900 | 1000 | 1000 | |
| Packing Dimension(L×W×H)(mm) | Unwinding Frame | 1000×1100×1260 | 3000×1350×1800 | 1000×1200×1260 | 3000×1450×1800 |
| Main Machine | 2420×1350×1360 | 2420×1450×1360 | |||
| Overall Dimension(L×W×H)(mm) | 7730×1350×1800 | 7730×1450×1800 | |||
Product Advantages Of Automatic Heat Seal Cut Plastic Bag Making Machine:
1. The functional parameters of Bag Making Machine Fully Automatic Hot Cutting are automatically adjustable and can pre-set bag making speed, length, temperature, counting, finished product transportation, etc.
2. Heat Sealing Heat Cutting Poly Bag Machine has functions such as automatic deviation correction, photoelectric tracking and unwinding, automatic constant tension control, and constant speed automatic feeding.
3. Bag Making Machine Fully Automatic Hot Cutting adopts color-coded electric eye tracking technology, which ensures accurate positioning, zero failure, and accurate sealing and cutting dimensions.
Enterprise Strength:
Our company has been immersed in the plastic bag making equipment industry for many years and has many experienced and technically mature staff; the machinery and equipment are highly intelligent and the production speed is fast; the company is based on integrity, abides by commitments, abides by contracts, and has a complete service system. If you want to know more about us and products, please feel free to contact me!
