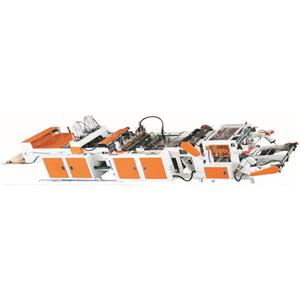

High Speed Double Lines Vest Bag Making Machine
1. The Vest bag making machine adopts microcomputer control and photoelectric tracking of color printing steps, which can operate stably and continuously at high speed for a long time.
2. The speed of the Vest bag making machine is adjustable, the temperature is controllable, and the sealing is firm, smooth and simple.
3. The Vest bag making machine has a novel structure, reliable performance, simple operation and high degree of automation.
Product Introduction Of Fully Automatic Hot Cut Thick Vest Plastic Bag Maker:
Vest bag making machine can be used to produce PE and color-printed plastic films. The mechanical structure of High Speed Fully Automatic T-Shirt Plastic Bag Maker is precisely designed. Through advanced computer control and precise mechanical design, it saves intermediate links and improves the accuracy and efficiency of production. It is The ideal combination machine for producing vest bags (vest bags).
Product Parameters Of Fully Automatic Hot Cut Thick Vest Plastic Bag Maker:
| Machine Type | WCJX-450×2-VB | WCJX-500×2-VB | WCJX-550×2-VB | WCJX-600×2-VB | |||||
| Maachine Components | Main Machine | Auxiliary Machine | Main Machine | Auxiliary Machine | Main Machine | Auxiliary Machine | Main Machine | Auxiliary Machine | |
| Bag Making Length(mm) | 240-650 | 300-850 | 300-850 | 300-1000 | |||||
| Bag Making Width(mm) | ≤400 | ≤450 | ≤500 | ≤550 | |||||
| Bag Making Thickness(mm) | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 | |||||
| Bag Making Speed(pcs/min) | PE | (50-400)×2 | (50-400)×2 | (50-350)×2 | (50-350)×2 | ||||
| PBAT | (50-300)×2 | (50-300)×2 | (50-250)×2 | (50-250)×2 | |||||
| Pressure Range(Mpa) | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 | |
| Punching Speed(times/min) | 1~8 | 1~8 | 1~8 | 1~8 | |||||
| Total Power(KW) | 19 | 1.5 | 19.5 | 1.5 | 20 | 1.5 | 19.5 | 1.5 | |
| Power Source(V/Hz) | 380/50 | 220/50 | 380/50 | 220/50 | 380/50 | 220/50 | 380/50 | 220/50 | |
| Machine Weight(Kg) | 1500 | 1400 | 1600 | 1500 | 1700 | 1600 | 1800 | 1700 | |
| Packing Dimension(L×W×H) | Unwinding Frame | 1000×1520×1260 | 2300×1670×1800 | 1000×1620×1260 | 2800×1770×1800 | 1000×1720×1260 | 3000×1870×1800 | 1000×1820×1260 | 3500×1970×1800 |
| Main Machine | 2420×1670×1360 | 2420×1770×1360 | 2420×1870×1360 | 2420×1970×1360 | |||||
| Overall Dimension(L×W×H)(mm) | 6704×1670×1800 | 7150×1770×1800 | 7350×1870×1800 | 7850×1970×1800 | |||||
Product Advantages Of Fully Automatic Hot Cut Thick Vest Plastic Bag Maker:
1. All functions of the Vest bag making machine can be set with one click, making the operation simple, convenient and fast.
2. Vest bag making machine is controlled by computer and driven by motor, with high production efficiency, stable operation and low noise.
3. The Vest bag making machine uses sensors to detect if there is a sudden or missing printing situation, it will automatically stop and activate the alarm function.
4. High Speed Fully Automatic T-Shirt Plastic Bag Maker adopts pneumatic punching device and online punching and clamping to reduce sealing and cutting errors, save intermediate links, and improve accuracy and efficiency.
