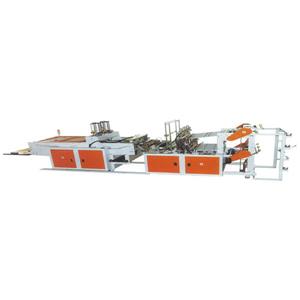

High Speed Four Lines Hot Sealing Cold Cutting Bag Making Machine
1. Quadruple Line Bag Maker uses a pneumatic punching device and online punching and clamping to improve accuracy and efficiency.
2. Quadruple Line Bag Maker can be fully automated and completed in one go, saving manpower and time.
3. Quadruple Line Bag Maker uses photoelectric tracking, which is highly accurate, and the motor is fixed in length, accurate and stable.
Product Introduction Of High Speed 4 Lines Bag Maker With Heat Seal Cold Cut:
Cold Cutting And Hot Sealing Bag Making Machine is suitable for heat sealing and cold cutting bag making of various high-density polyethylene and low-density polyethylene films. It is widely used in video, clothing, industry, electrical, daily use and other fields. It is an ideal tool for producing flat bags. Ideal combination model with vest bag.
Product Parameters Of High Speed 4 Lines Bag Maker With Heat Seal Cold Cut:
| Machine Type | WCJX-350×4-VB(FB) | WCJX-400×4-VB(FB) | ||
| Machine Components | Main Machine | Auxiliary Machine | Main Machine | Auxiliary Machine |
| Glove Making Length(mm) | 240-650 | 240-650 | ||
| Glove Making Width(mm) | ≤260 | ≤310 | ||
| Glove Making Thickness(mm) | 0.005-0.015 | 0.005-0.015 | ||
| Glove Making Speed(pcs/min) | (60-240)×4 | (60-240)×4 | ||
| Pressure Range(MPa) | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 |
| Punching Speed(times/min) | 1~8 | 1~8 | ||
| Total Power(KW) | 14 | 2.1 | 15 | 2.1 |
| Power Source(V/Hz) | 380/50 | 220/50 | 380/50 | 220/50 |
| Machine Weight(Kg) | 1000 | 950 | 1100 | 1050 |
| Packing Dimension(L×W×H)(mm) | 2300×1330×1790 | 2300×1420×1800 | 2300×1430×1790 | 2300×1520×1800 |
| Overall Dimension(L×W×H)(mm) | 5640×1420×1800 | 5640×1520×1800 | ||
Product Advantages Of High Speed 4 Lines Bag Maker With Heat Seal Cold Cut:
1. The Quadruple Line Bag Maker is made of high-quality materials, with stable structure and long service life; the sealing and cutting knife is reasonably designed and easy to clean and replace.
2. The Quadruple Line Bag Maker uses heat sealing and cold cutting, and is equipped with photoelectric automatic tracking, automatic control of feeding, and static elimination devices. The bag making process is automated, easy to operate, stable in performance, and firm in back sealing.
3. The Quadruple Line Bag Maker adopts microcomputer control and can complete feeding, back sealing, bag cutting, punching and conveying at one time, with a high degree of automation.
Enterprise Strength:
Our company has professional sales staff to explain to you the efficacy and usage of Quadruple Line Bag Maker; professional technical staff provide technical consultation and training so that you can fully understand the performance and characteristics of Cold Cutting And Hot Sealing Bag Making Machine; if you There are many difficult questions, and we also have experienced masters who can provide tracking services. If you are interested in plastic bag equipment, please contact us!
