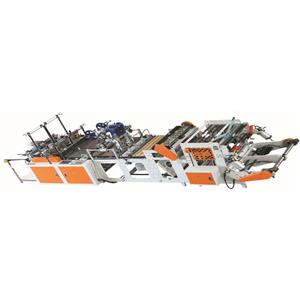

Flat Bag Making And Folding Transport Machine
1. The feeding rubber rollers and anti-stretch rubber rollers of the flat bag manufacturing and folding conveyor machine run synchronously, and the sealing is firm and beautiful without stretching.
2. Flat bag manufacturing and folding conveyor machine can realize synchronous automatic labeling, with precise position and stable performance.
3. Flat bag manufacturing and folding conveyor machine can feed materials at high speed and is controlled by microcomputer with a high degree of automation.
Product Introduction Of Fully Automatic Folding Bag Making Machine:
Biodegradable Plastic Flat Bag Making Machine uses PE and degradable material tube films as raw materials. It can produce and print natural and colored food and industrial flat bags. It is controlled by a microcomputer and can start from feeding, back sealing, cutting, punching and conveying in one step. Complete, high degree of automation, low failure rate; full computer monitoring, adjustable bag length, production speed, feeding rubber roller and anti-stretch rubber roller running simultaneously, no need to adjust the tension, it is an ideal model for producing flat bag packaging .
Product Parameters Of Fully Automatic Folding Bag Making Machine:
| Machine Type | WCJX-400×2-FB | WCJX-500×2-FB | WCJX-600×2-FB | WCJX-700-FB | WCJX-800-FB | |
| Machine Components | Main Machine | Main Machine | Main Machine | Main Machine | Main Machine | |
| Bag Making Length(mm) | ≤800 | ≤1000 | ≤1200 | ≤1500 | ≤1500 | |
| Bag Making Width(mm) | 100-300 | 100-400 | 150-500 | 300-650 | 300-750 | |
| Bag Making Thickness(mm) | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | |
| Bag Making Speed(pcs/min) | PE Film | (30-260)×2 | (30-240)×2 | (30-200)×2 | 30-200 | 30-200 |
| PBAT/PLA Film | (30-200)×2 | (30-200)×2 | (30-150)×2 | 30-150 | 30-150 | |
| Pressure Range(MPa) | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 | |
| Total Power(KW) | 16.5 | 17.5 | 18.5 | 11.5 | 12 | |
| Power Source(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | |
| Machine Weight(Kg) | 1600 | 1700 | 1800 | 1300 | 1400 | |
| Packing Dimension(LXWXH)(mm) | Unwinding Frame | 1000×1420×1260 | 1000×1620×1260 | 1000×1820×1260 | 1000×1100×1260 | 1000×1200×1260 |
| Main Machine | 3800×1570×1790 | 3800×1770×1790 | 3800×1970×1790 | 2300×1330×1940 | 2300×1430×1940 | |
| Overall Dimension(LXWXH)(mm) | 5200×1570×1790 | 5200×1770×1790 | 5200×1970×1790 | 3745×1330×1940 | 3745×1430×1940 | |
Product Advantages Of Fully Automatic Folding Bag Making Machine:
1. The Biodegradable Plastic Flat Bag Making Machine can set the bag making length and speed arbitrarily; it has photoelectric tracking and color printing, and it can automatically stop in case of emergency, which is highly safe.
2. The flat bag manufacturing and folding conveyor machine has a cold cutting device, the cutter is sharp, and the bag mouth is firmly sealed, flat and beautiful.
3. Biodegradable Plastic Flat Bag Making Machine uses high-precision motors and microcomputer control, with high precision, fast feeding, strong power and long service life.
Enterprise Strength:
Our company is a company specializing in the production of plastic bag making equipment. The product specifications are complete, the price is affordable and the flat bag manufacturing and folding conveyor machine has been highly designed and meets the usage standards. Our company has a sound service system and can provide you with professional technical consultation. If you need it, you can contact our company!
