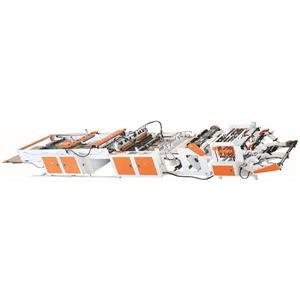

Heat Sealing And Cold Cutting Bag Making Machine
1. Automatic Flat Pouch Maker with Heat Cold Cut is equipped with automatic counting and alarm devices to reduce labor costs and improve production efficiency.
2. Automatic Flat Pouch Maker with Heat Cold Cut is capable of optical eye tracking, accurate positioning, and can automatically stop when errors occur.
3. The parameters of Automatic Flat Pouch Maker with Heat Cold Cut are adjustable, such as bag making length, speed, temperature, etc.
Product Introduction Of Automatic Heat Seal Cold Cut Plastic Bag Maker:
Our Automatic Heat Seal Cold Cut Plastic Bag Maker is a two-line model, specially designed for both flat bags and garbage bags; it uses photoelectric tracking, computerized length, automatic counting and alarm; Heat Sealing Cold Cutting Flat Bag Making Machine compensation It has high precision and small error, and is suitable for producing plastic bags in various industries.
Product Parameters Of Automatic Heat Seal Cold Cut Plastic Bag Maker:
×
| Machine Type | WCJX-500×2FC-FB | WCJX-600×2FC-FB | |||
| Machine Components | Main Machine | Auxiliary Machine | Main Machine | Auxiliary Machine | |
| Bag Making Length(mm) | 350-1350(+600) | 350-1350(+600) | |||
| Bag Making Width(mm) | 200-400 | 200-500 | |||
| Bag Making Thickness(mm) | 0.02-0.3 | 0.02-0.3 | |||
| Bag Making Speed(PCS/min) | PE Film | (30-180)×2 | (30-180)×2 | ||
| PBAT/PLA Film | (30-150)×2 | (30-150)×2 | |||
| Pressure Range(Mpa) | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 | |
| Total Power(KW) | 20 | 1.5 | 21 | 1.5 | |
| Power Source(V/HZ) | 380/50 | 220/50 | 380/50 | 220/50 | |
| Machine Weight(Kg) | 1500 | 1200 | 1600 | 1300 | |
| Packing Dimension(LXWXH)(mm) | Unwinding Frame | 1000×1870×1260 | 3000×1870×1460 | 1000×1970×1260 | 3000×1970×1460 |
| Main Machine | 2420×1870×1360 | 2420×1970×1360 | |||
| Overall Dimension(LXWXH)(mm) | 9510×2100×1550 | 8750×1970×1460 | |||
Product Advantages Of Automatic Heat Seal Cold Cut Plastic Bag Maker:
1. Automatic Flat Pouch Maker with Heat Cold Cut has multiple automatic protection functions such as energy saving, overload, overvoltage, and overcurrent.
2. The sealing of the Heat Sealing Cold Cutting Flat Bag Making Machine is synchronized with the heat sealing and cold cutting. There is no stretching, the sealing position is not affected, and the sealing is firm, smooth and beautiful.
3. Automatic Flat Pouch Maker with Heat Cold Cut uses advanced photoelectric eye tracking, accurate position without error, heat sealing and cold cutting, and a high degree of automation.
4. Heat Sealing Cold Cutting Flat Bag Making Machine is widely used and suitable for producing bags in many fields such as food, industry, and daily necessities.
About Us:
Yingkou Wancheng Machinery Co., Ltd. was established in 1997 and is located in Bayuquan District, Yingkou City, Liaoning Province, a beautiful coastal city. Our company has mature technology and rich manufacturing experience. It is a company specializing in the production and manufacturing of plastic bag making equipment. We have advanced technology, excellent products, and perfect services; if you need it, you can contact us at any time!
