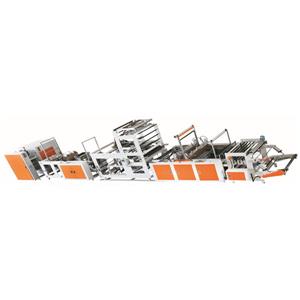

Automatic Flat / S Type Rolling Bag Making Machine
1. Interleave s type bag making machine has high folding accuracy, no need for manual sorting, accurate feeding, and no material interruption.
2. The Interleave s type bag making machine is precisely controlled by computer, making the operation convenient and worry-free.
3. Interleave s type bag making machine has good safety performance and is sensitive and stable during the production process.
Automatic Flat Mouth Continuous Roll Bag Making Machine Product Uses:
Overlap flat bag making machine can make natural or colored cylindrical films from polyethylene materials and degradable materials through heat sealing, cold cutting, and continuous rolling bags. Through system control, continuous feeding can be achieved. The machine adopts rolling cutting point breaking. technology, the incision is smooth and stable. By changing the mold (straight type or S type), different types of products can be produced.
Product Parameters Of Automatic Flat Mouth Continuous Roll Bag Making Machine:
| Machine Type | WCJX-1100FB(ST)-RB | WCJX-1300FB(ST)-RB | |||
| Machine Components | Main Machine | Auto Roll-change Auxiliary Machine | Main Machine | Auto Roll-change Auxiliary Machine | |
| Bag Making Length(mm) | 500-1500 | 500-1500 | |||
| Bag Making Width(mm) | 500-1000 | 500-1200 | |||
| Bag Making Thickness(mm) | 0.025-0.25 | 0.025-0.25 | |||
| Making Speed(M/min) | PE Film | 50-150 | 50-150 | ||
| PBAT/PLA Film | 50-120 | 50-120 | |||
| Roll Changing Speed(times/min) | 4-8 | 4-8 | |||
| Pressure Range(MPa) | 0.2-0.6 | 0.4-0.6 | 0.2-0.6 | 0.4-0.6 | |
| Total Power(KW) | 26 | 5 | 27 | 5 | |
| Power Source(V/Hz) | 380/50 | 220/50 | 380/50 | 220/50 | |
| Machine Weight(Kg) | 2500 | 800 | 2600 | 800 | |
| Packing Dimension(LXWXH)(mm) | Unwinding Frame | 1000×1870×1260 | 1880×1200×1600 | 1000×2070×1260 | 1880×1400×1600 |
| 2200×1870×2020 | 2200×2070×2020 | ||||
| 2020×1870×2370 | 2020×2070×2370 | ||||
| Main Machine | 2210×1870×1980 | 2210×2070×1980 | |||
| Overall Dimension(LXWXH)(mm) | 11000×1870×2370 | 11000×2070×2370 | |||
Product Advantages Of Automatic Flat Mouth Continuous Roll Bag Making Machine:
1.Overlap flat bag making machine adopts leading technology, and the computer accurately controls the bag length and production speed.
2. The Overlap flat bag making machine adopts excellent materials and structures and can realize functions such as automatic folding, automatic correction, and constant tension.
3. Interleave s type bag making machine's electric eye tracks the color printing mark to make the position of text and pictures more accurate.
4. Overlap flat bag making machine is suitable for a wide range of industries and can process bags in many fields such as clothing, food, and daily necessities.
Common Problem:
1. What is the inventory situation?
The regular inventory is sufficient and will be shipped within 20 days after the order is placed.
2. What are your main products?
Our company was established in 1997. The company is an enterprise specializing in R&D, production and sales of plastic bag making equipment. Its main products include HDPE, LDPE, LLDPE, PBAT+PLA computer-controlled heat sealing and cutting vest bag making machines, heat sealing and cold cutting flat Pocket bag making machine, fully automatic cored and coreless rolled bag making machine, buckle handbag bag making machine, PE, TPE glove forming machine and other models.
