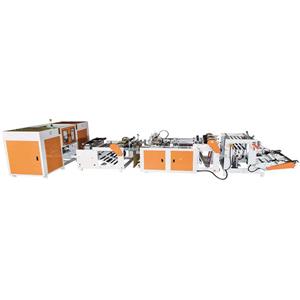

Double Lines Hot Sealing Cold Cutting Coreless Bag Making Machine
1. Dual-Track Coreless Bag Maker with Hot seal Cold Cutting has fine processing technology and high bag welding strength.
2. The characteristic of Two Track Coreless Bag Maker with Hot seal Cold Cutting is to reduce the stretching of the sealed bag during operation, and the product is beautiful and strong.
3. Two Track Coreless Bag Maker with Hot seal Cold Cutting uses electric eyes to track color printing film color marks, which has high precision, reduces waste and saves costs.
Product Introduction Of Dual-Track Coreless Bag Maker With Hot Seal Cold Cutting:
Dual Line Coreless Bag Maker with Heat Seal Cold Cut is suitable for heat-sealing, cold-cutting and roll-sealing bags of PE materials and color printing films. The cutting range can be determined according to material specifications; the main board is clear and concise, the components are highly integrated, the stability is strong, and the operation is It is fast and is an ideal machine for producing coreless flat mouth and roll bags.
Product Parameters Of Dual-Track Coreless Bag Maker With Hot Seal Cold Cutting:
| Machine Type | WCJX-450X2ACL-RB | ||
| Machine Components | Main Machine | Auto Roll-change Auxiliary Machine | |
| Bag Making Length(mm) | 300-1500 | ||
| Bag Making Width(mm) | ≤300 | ||
| Bag Making Thickness(mm) | 0.04-0.2 | ||
| Bag Making Speed(pcs/min) | PE | (50-300)×2 | |
| PBAT | (50-200)×2 | ||
| Roll-change Speed(times/min) | 7 | ||
| Pressure Range(Mpa) | 0.2-0.6 | 0.4-0.6 | |
| Total Power(KW) | 12 | 8 | |
| Power Source(V/HZ) | 380/50 | 220/50 | |
| Machine Weight(Kg) | 1500 | 1500 | |
| Packing Dimension(L×W×H)(mm) | Unwinding Frame | 1000×1520×1260 | 1100×2950×1600 |
| Main Machine | 2120×1670×1360 | ||
| EPC Auxiliary Frame | 1760×1450×1050 | ||
| Overall Dimension(L×W×H)(mm) | 6580×2950×1600 | ||
Product Advantages Of Dual-Track Coreless Bag Maker With Hot Seal Cold Cutting:
1. Dual Line Coreless Bag Maker with Heat Seal Cold Cut adopts microcomputer control, which is intelligent and saves labor.
2. Dual Line Coreless Bag Maker with Heat Seal Cold Cut is equipped with automatic feeding control device, automatic constant temperature control device, automatic counting and alarm device, etc. The bag making process is automated, easy to operate, and has stable performance.
3. . The cutter of the Two Track Coreless Bag Maker with Hot seal Cold Cutting is sharp, the incision is flat, and the cutting is precise. The bags produced have good sealing and are durable.
Enterprise Strength:
1. The company is based on integrity, abides by its commitments, attaches great importance to service, and provides customers with advice and support at any time.
2. During transportation, complete and firm packaging will be used to avoid damage to the equipment.
3. Provide fully transparent logistics services and deliver goods within the time agreed upon in the contract.
