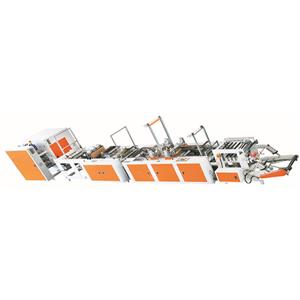

Full Automatic S Type Rolling Bag Making Machine
1. Fully automatic rolling bag making machine is mainly used to process rolling flat bags with high production efficiency.
2. Fully Automatic S shape garbage bag on roll making machine can realize fully automatic feeding, saving labor and stable working status.
3. Automatic S shaped rolling bag production machine adopts electric eye tracking, which has accurate positioning and can automatically correct deviations.
Automatic S Shaped Rolling Bag Production Machine Product Uses:
Fully Automatic S shape garbage bag on roll making machine can realize continuous and uninterrupted feeding. It adopts rolling cutting point breaking technology to ensure smooth and stable cuts. The mold can be replaced as needed (straight type, S type, vest type), and the products needed by the production enterprise.
Product Parameters Of Fully Automatic Rolling Bag Making Machine:
| Machine Type | WCJX--450FB(ST)-RB | ||
| Machine Components | Main Machine | Auxiliary Machine | |
| Bag Making Length(mm) | 500-1500 | ||
| Bag Making Width(mm) | 100-300 | ||
| Bag Making Thickness(mm) | 0.04-0.2 | ||
| Bag Making Speed(M/min） | PE Film | 50-150 | |
| PBAT/PLA Film | 50-120 | ||
| Roll Changing Speed(times/min) | 4-8 | ||
| Pressure Range(Mpa) | 0.2-0.6 | 0.4-0.6 | |
| Total Power(KW) | 24 | 5 | |
| Power Source(V/Hz) | 380/50 | 220/50 | |
| Machine Weight(Kg) | 2000 | 800 | |
| Packing Dimension(LXWXH)(mm) | Unwinding Frame | 1000×1000×1260 | 900×1900×1700 |
| Main Machine | 2400×1250×2300 | ||
| Hob Cutting Frame | 2400×1250×2000 | ||
| Overall Dimension(LXWXH)(mm) | 7800×1900×2300 | ||
Product Advantages Of Automatic S Shaped Rolling Bag Production Machine:
1. Fully Automatic S shape garbage bag on roll making machine is equipped with automatic roll changing auxiliary machine to reduce labor intensity and improve product quality.
2. The main machine of the Fully automatic rolling bag making machine is synchronized with the feeding speed to enhance production stability.
3. Fully automatic rolling bag making machine has various automatic functions such as sealing and cutting, feeding, counting, discharging, and reporting.
Precautions For Automatic S Shaped Rolling Bag Production Machine:
1. Prepare work, check whether the workbench and machine are running normally, and prepare raw materials.
2. Adjust the length, width, thickness, temperature, speed and other process parameters of the bag making machine according to the bag properties and size.
3. Monitor the production process in a timely manner to ensure the normal operation of the equipment.
Enterprise Strength:
Our company is a company specializing in the production of plastic bags. We have accumulated many years of industry experience. Our production scale and product quality have reached a certain competitive level. Our company has complete technology and can provide customers with high-quality pre-sales and after-sales services. If you are interested ,Welcome to contact us!
