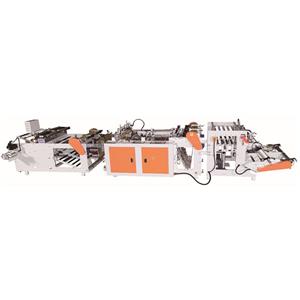

Double Lines Cored Bag On Roll Making Machine
1. Double lines drum linkage bag making machine can make two plastic bags at the same time. It has fast production speed, high production efficiency, saves time and cost, and is suitable for mass production needs.
2. The Double Lines Roll Bag Making Machine adopts an advanced computer control system and is equipped with a correction device, which can accurately adjust parameters such as temperature and speed, and the product production quality is stable.
3. Double lines connection bag making machine adopts advanced production technology and raw materials. The equipment structure is stable, simple to operate and easy to maintain.
Product Uses Of Double Lines Connection Bag Making Machine:
Double lines connection bag making machine adopts heat sealing and cold cutting technology. Through the alternating operation of tooth knife point breaking and sealing copper knife, the sealing is even and firm, improving production efficiency and reducing labor costs. Double lines drum linkage bag making machine can handle various A variety of polyethylene materials and degradable materials can realize continuous bag making. It is suitable for producing plastic bags made of various polyethylene materials and degradable materials. It is an ideal machine for producing cored flat mouth continuous roll bags.
Product Parameters:
| Machine Type | WCJX-450×2-RB(EPC) | WCJX-500×2-RB(EPC) | |
| Bag Making Length(mm) | ≤800 | ≤800 | |
| Bag Making Width(mm) | 200-400 | 200-450 | |
| Bag Making Thickness(mm) | 0.008-0.15 | 0.008-0.15 | |
| Bag Making Speed(pcs/min) | PE | (50-300)×2 | (50-300)×2 |
| PBAT | (50-200)×2 | (50-200)×2 | |
| Pressure Range(Mpa) | 0.2-0.6 | 0.2-0.6 | |
| Total Power(KW) | 13 | 13.5 | |
| Power Source(V/Hz) | 380/50 | 380/50 | |
| Machine Weight(Kg) | 2000 | 2100 | |
| Packing Dimension(L×W×H)(mm) | Unwinding Frame | 1000×1520×1260 | 1000×1620×1260 |
| Main Machine | 2120×1670×1360 | 2120×1770×1360 | |
| Auxiliary Machine | 1970×2000×1410 | 1970×2100×1410 | |
| Overall Dimension(L×W×H)(mm) | 5400×2000×1410 | 5400×2100×1410 | |
Product Advantages:
1. The Double lines connection bag making machine uses top-grade components and is equipped with two sets of high-voltage sensors. The two production lines are produced at the same time to increase output and improve productivity.
2. Double lines drum linkage bag making machine adopts a new automatic paper core feeding system, with automatic positioning and replacement functions of the drum, which is easy to operate and has high operating efficiency.
3. Intelligent program control management, optimized operating parameters, precise control of bag length, high production speed, low power consumption, and sustainable development.
4. The plastic bags produced by Double Lines Roll Bag Making Machine are suitable for a wide range of fields, including clothing, food, medicine, health care, animal husbandry, retail industries, etc. The bags produced by Double Lines Roll Bag Making Machine are reliable and durable, and comply with industry standards and product quality specifications. .
